12.2. Add Bevel

12.2. Add Bevel
	12. Decor Filters

12.2.1. Overview

Figure 17.244. Example for the “Add Bevel” filter

Original image, the colored rectangle is selected

“Add Bevel” applied

This filter adds a slight bevel to an image using a bump map (see below). If there is a selection, it is bevelled, otherwise the filter has no effect.

Figure 17.245. Another “Add Bevel” example, with bumpmap

Original image

Bumpmap

Filter applied

12.2.2. Activating the Filter

This filter is found in the main menu under Filters → Decor → Add Bevel….

12.2.3. Options

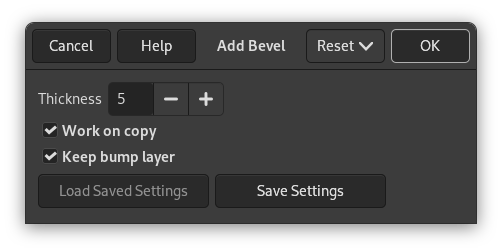

Figure 17.246. “Add Bevel” options

Thickness: You can specify the thickness of the bevel, in pixels. Maximal thickness is 30 pixels.
Work on copy: If checked, the filter creates a new window containing a copy of the image with the filter applied. The original image remains unchanged.
Keep bump layer: When checked, you will keep the generated bumpmap as a new, not visible layer:

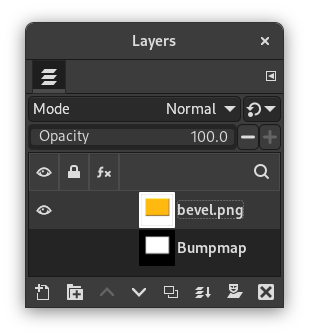

Layers Dialog with “Keep bump layer” enabled
