8.7. Image Gradient

8.7.1. Visão-geral

Figura 17.169. Applying example for the Image Gradient filter

Applying example for the Image Gradient filter

Imagem original

Applying example for the Image Gradient filter

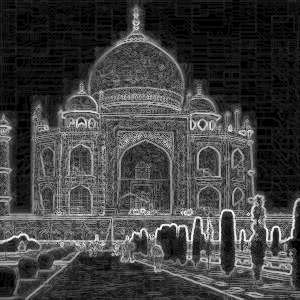

Filter “Image Gradient” applied with default options.

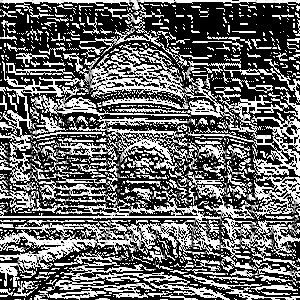

Filter “Image Gradient” applied with Direction option.

This filter detects edges in one or two gradient directions.

8.7.2. Activating the Filter

This filter is found in the main menu under Filters → Edge-Detect → Image Gradient….

8.7.3. Opções

Figura 17.170. Image Gradient filter options

Image Gradient filter options

Presets, “Input Type”, Clipping, Blending Options, Pré-visualização, Merge filter, Split view
[Nota] Nota

These options are described in Seção 2, “Common Features”.

Output mode

Magnitude is default: it combines both directions. Direction: only one direction is used. Both is like Magnitude.

Figura 17.171. Output mode examples

Output mode examples

Original image, with abrupt luminosity change

Output mode examples

Option Magnitude is selected

Output mode examples

Option Direction is selected. In result, black is no edge detected, white is edge detected.
