12.10.1. Overview

Şekil 17.270. Example for the “Stencil Carve” filter

Original image

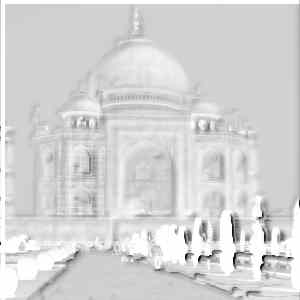

“Stencil Carve” applied

This filter works with two images, source and target. The source image must be a grayscale image containing a single layer and no Alpha channel. This layer is used as selection mask and will work as stencil for the carving effect. The image to be carved (the target image) can be an RGB color or grayscale image, also with a single layer. This target image must have the same size as the source image.

12.10.2. Activating the Filter

This filter is found in the main menu under Filters → Decor → Stencil Carve….

	İpucu
	If this command remains disabled although the image is grayscale, check for an Alpha channel and delete it.

12.10.3. Options

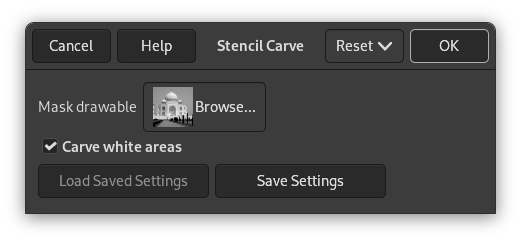

Şekil 17.271. “Stencil Carve” options

Mask drawable

Here you may select the target image and its layer or channel which the carving effect is applied to.

Carve white areas

If checked (default), the source image is used as stencil as described above. If unchecked, the inverted source image is used as stencil, e.g.:

Şekil 17.272. Engraving Masks

Normal mask

Inverted mask

In the example below, the source is a grayscale image. The target is an image with a wood pattern.

On the left, Carve white areas is enabled. The pixels of the target image corresponding to white pixels in the stencil (around the text) have been carved. The result is an embossed text.

On the right, Carve white areas is disabled. The pixels of the target image corresponding to the black pixels in the stencil (the text) have been carved. The result is a hollow text.

Şekil 17.273. Example for “Carve white areas”

White areas carved

Stencil

Black areas carved

Information about the many layers created by this filter can be found in [GROKKING].
