8.40. Auf Palette

8.40.1. Wirkungsweise

This plug-in recolors the image using colors from the active palette that you choose in the Palettes dialog.

It maps the contents of the specified drawable (layer, selection, etc.) with the active palette. It calculates luminosity of each pixel and replaces the pixel by the palette sample at the corresponding index. A complete black pixel becomes the lowest palette entry, and complete white becomes the highest. Works on both Grayscale and RGB images with or without alpha channel.

8.40.2. Aufruf des Befehls

You can access this command from the main menu through ColorsMapPalette Map.

8.40.3. Beispiel

Abbildung 16.195. Die aktive Palette auf einen Farbverlauf angewendet

Die aktive Palette auf einen Farbverlauf angewendet

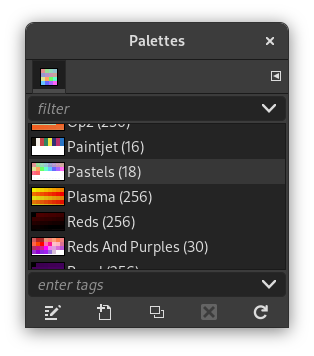

Die aktuelle Palette (mit 18 Farben)

Die aktive Palette auf einen Farbverlauf angewendet

Links: Originalbild. Rechts: Auf Palette angewandt.
