Bayer Matrix filter applied with Scale X, Y = 20

A grand-sounding name for a simple filter. Bayer matrix is related to ordered dithering, which is an image dithering algorithm used to display a continuous image on a display of smaller color depth. The algorithm reduces the number of colors by applying a threshold map known as Bayer matrix (Wikipedia). The present filter uses the Bayer matrix only to create a pattern.

This filter is found in the main menu under Filters → Render → Pattern → Bayer Matrix….

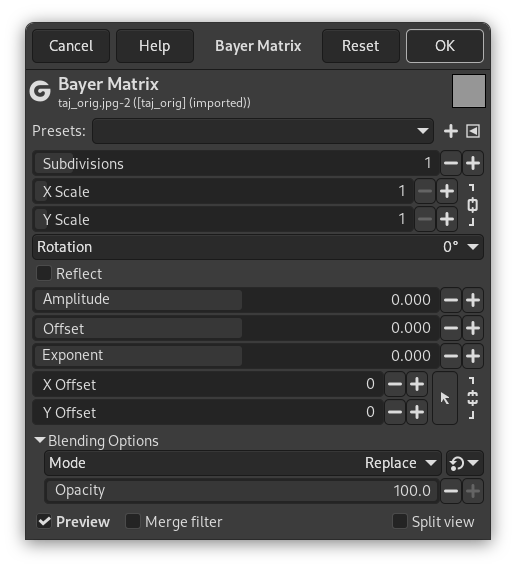

Presets, Input Type, Clipping, Blending Options, Preview, Merge filter, Split view


	These options are described in .

Subdivisions

The number of subdivisions used.

X Scale, Y Scale

Horizontal, Vertical pattern size.

Rotation

Pattern rotation angle.

Reflect

Reflect the pattern horizontally when enabled.

Amplitude

Pattern amplitude.

Offset

Value offset.

Exponent

Value exponent using a logarithmic scale.

X Offset, Y Offset

Here you can change the X and Y offsets.
