14.11.1. Overview

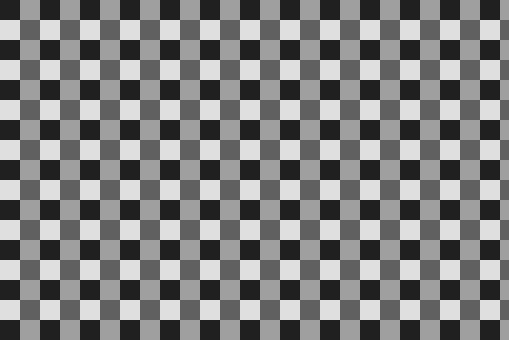

Figure 17.348. Example for the Bayer Matrix filter

“Bayer Matrix” filter applied with Scale X, Y = 20

A grand-sounding name for a simple filter. Bayer matrix is related to ordered dithering, which is an image dithering algorithm used to display a continuous image on a display of smaller color depth. The algorithm reduces the number of colors by applying a threshold map known as Bayer matrix (Wikipedia). The present filter uses the Bayer matrix only to create a pattern.

14.11.2. Activating the Filter

This filter is found in the main menu under Filters → Render → Pattern → Bayer Matrix….

14.11.3. Options

Figure 17.349. “Bayer Matrix” filter options

Presets, “Input Type”, Clipping, Blending Options, Preview, Merge filter, Split view

	Note
	These options are described in Section 2, “Common Features”.

Subdivisions

The number of subdivisions used.

X Scale, Y Scale

Horizontal, Vertical pattern size.

Rotation

Pattern rotation angle.

Reflect

Reflect the pattern horizontally when enabled.

Amplitude

Pattern amplitude.

Offset

Value offset.

Exponent

Value exponent using a logarithmic scale.

X Offset, Y Offset

Here you can change the X and Y offsets.
