7.4. Diàleg d'estat dels dispositius

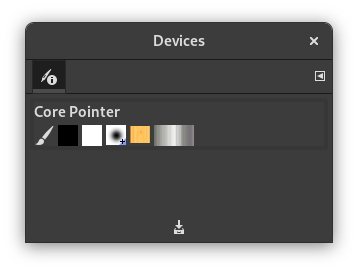

Figura 15.108. El diàleg d'«Estat dels dispositius»

El diàleg d'«Estat dels dispositius»

This window gathers together the current tool settings for each of your input devices: the mouse (named «Virtual Core pointer»), drawing tablets (usually shown as two devices: a pen and an eraser), or other pointing devices.

For each device several icons are shown that represent the current settings: the active tool, the foreground and background colors, and the active brush, pattern and gradient for that device. By clicking on an icon of one of the resources its dialog will open, which lets you change the active resource. You can drag and drop items from this dialog to the image window.

Some users prefer to have all devices share the same tool settings. This is possible by changing the Share tool and tool options between input devices setting in the Input devices tab of the Preferences dialog.

[Nota] Nota

There is a known issue on Windows that causes switching between devices not to work. This means that all setting changes are shown on the Virtual Core Pointer device settings.

El botó Desa l'estat del dispositiu a la part inferior de la finestra realitza la mateixa acció que el botó Desa ara la configuració del dispositiu d'entrada al Dispositius d'entrada de les preferències.

7.4.1. Activeu el diàleg

Aquest diàleg és un diàleg acoblable; mireu la secció Secció 2.3, «Diàlegs i acobladors» sobre el seu ús.

  • Des d'un menú principal: FinestresDiàlegs acoblablesEstat del dispositiu.

  • Des del menú de la pestanya en qualsevol diàleg: Afegeix un acobladorEstat del dispositiu
