7.4. Dialog stare dispozitiv

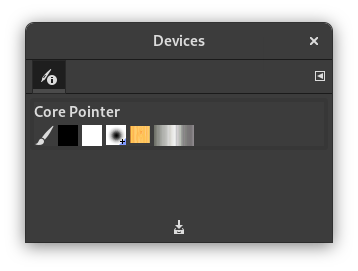

Fig. 15.108. Dialogul Stare dispozitive

Dialogul „Stare dispozitive”

This window gathers together the current tool settings for each of your input devices: the mouse (named Virtual Core pointer), drawing tablets (usually shown as two devices: a pen and an eraser), or other pointing devices.

For each device several icons are shown that represent the current settings: the active tool, the foreground and background colors, and the active brush, pattern and gradient for that device. By clicking on an icon of one of the resources its dialog will open, which lets you change the active resource. You can drag and drop items from this dialog to the image window.

Some users prefer to have all devices share the same tool settings. This is possible by changing the Share tool and tool options between input devices setting in the Input devices tab of the Preferences dialog.

[Notă] Notă

There is a known issue on Windows that causes switching between devices not to work. This means that all setting changes are shown on the Virtual Core Pointer device settings.

The Save device status button at the bottom of the window performs the same action as the Save Input Device Settings Now button in the Input Devices section of the preferences.

7.4.1. Activarea dialogului

Acest dialog este un dialog andocabil; a se vedea secţiunea Secțiune 2.3, „Dialoguri și andocare” pentru ajutor privind manevrarea.

  • From the main menu: WindowsDockable DialogsDevice Status.

  • From the Tab menu in any dialog: Add a DockDevice Status
