7.4. Dialogen Enhedsstatus

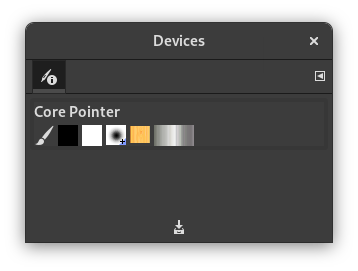

Figur 15.108. Dialogen Enhedsstatus

Dialogen “Enhedsstatus”

This window gathers together the current tool settings for each of your input devices: the mouse (named Virtual Core pointer), drawing tablets (usually shown as two devices: a pen and an eraser), or other pointing devices.

For each device several icons are shown that represent the current settings: the active tool, the foreground and background colors, and the active brush, pattern and gradient for that device. By clicking on an icon of one of the resources its dialog will open, which lets you change the active resource. You can drag and drop items from this dialog to the image window.

Some users prefer to have all devices share the same tool settings. This is possible by changing the Share tool and tool options between input devices setting in the Input devices tab of the Preferences dialog.

[Bemærk] Bemærk

There is a known issue on Windows that causes switching between devices not to work. This means that all setting changes are shown on the Virtual Core Pointer device settings.

Knappen Gem enhedsstatus i bunden af dialogen udfører samme handling som indstillingen Gem indstillinger for inputenheder nu i afsnittet Inputenheder under Indstillinger.

7.4.1. Aktivér dialogen

Dialogen kan dokkes. Se hvordan i afsnittet Afsnit 2.3, “Dialoger og dokning”.

  • gennem hovedmenuen: VinduerDokbare dialogerEnhedsstatus.

  • gennem fanebladsmenuen i enhver dokbar dialog ved at klikke og vælge Tilføj fanebladEnhedsstatus.
