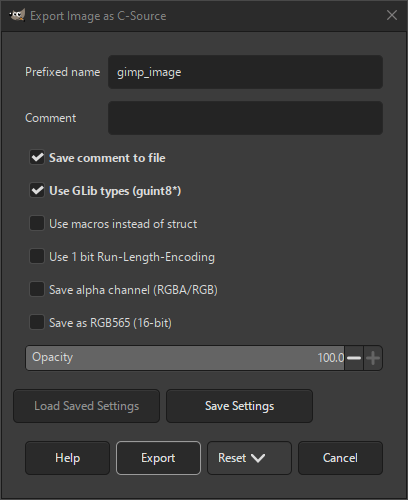

The C-source export dialog allows you to export your image as a C source file that can be included in a program written in C.
- Prefixed name
-
The name of the variable that will hold the image data.
- Comment
-
A comment that will be added to the image data.
- Save comment to file
-
The Comment will only be exported to the C file when this setting is checked.
- Use GLib types (guint8*)
-
When checked GLib datatypes like „guint8“ will be used. When unchecked, plain C datatypes will be used instead.
- Use macros instead of a struct
-
When checked, macros will be used to define the image data. When unchecked, a struct will be used instead.
- Use 1-bit Run-Length-Encoding
-
When checked, the image data will be encoded using Run-Length-Encoding compression. A function macro called
GIMP_IMAGE_RUN_LENGTH_DECODE
will be added to the source file that can be used to decode the image data.
- Save alpha channel (RGBA/RGB)
-
When checked, the image data will include the alpha channel.
- Save as RGB565 (16-bit)
-
When checked, the image data will be saved in 16-bit RGB565 format, using only two bytes instead of three to store the image data.
- Opacity
-
This slider allows you to set the opacity of the image data.
