6.30. Aligner les calques visibles…

Cette commande permet de positionner les calques visibles (ceux marqués d’un œil) de façon très précise. Ce n’est pas utile dans le travail habituel sur les images, mais ça l’est beaucoup plus lors de la création d’animations, avec de nombreux petits calques. En cliquant sur cette option, vous ouvrez une fenêtre de dialogue contenant de nombreux paramètres d’alignement.

6.30.1. Accès à la commande

  • You can access this command from the main menu through ImageAlign Visible Layers…. There is no default keyboard shortcut. If the image holds a single layer only, you get a message from GIMP telling that there must be more than one layer in the image to execute the command.

6.30.2. Example Image for Layer Alignment

The examples in the Description of the “Align Visible Layers” dialog section all use the same starting image. The image contains four layers. The order of those layers from top to bottom is as follows:

  • Green, vertical rectangle (top layer)

  • Yellow, horizontal rectangle

  • Red, small square

  • Blue, larger square (bottom layer)

Figure 16.76. Example Image for Layer Alignment

Example Image for Layer Alignment

The Align Visible Layers command aligns layers based on their boundaries. In the example image, each layer's boundary is adjusted to match the perimeter of the shape in that layer. For information about how to adjust a layer's boundary, see Layer Boundary Size. You can also use a command such as Crop Layers to Content to automatically adjust a layer's boundary.

[Note] Note

In the examples, the Ignore the bottom layer even if visible checkbox is left checked. The bottom layer, which is the larger blue square, is then not affected by any of the alignment operations.

6.30.3. Options

Figure 16.77. La fenêtre « Fusionner les calques visibles »

La fenêtre « Fusionner les calques visibles »

Horizontal style, Vertical style

Cette option contrôle comment les calques visibles seront déplacés horizontalement / verticalement les uns par rapport aux autres:

  • Aucun: Aucun changement ne sera apporté aux positions horizontales / verticales.

  • Rassembler: Cette option aligne la «Base Horizontale / verticale» sélectionnée (Bord gauche, Milieu, Bord droit / Bord haut, Milieu, Bord bas) sur le bord gauche / haut du canevas. Si vous choisissez Bord Droit, les calques sortent du canevas ; vous pouvez les retrouver en agrandissant le canevas. Si l’option Calque du bas comme base est cochée, l’alignement se fait sur le bord correspondant du calque du bas de la pile.

    Figure 16.78.  Example Use of Collect: Layers Aligned to Left Edge of the Canvas

    Example Use of Collect: Layers Aligned to Left Edge of the Canvas

    Image d’origine

    Example Use of Collect: Layers Aligned to Left Edge of the Canvas

    Horizontal style: Collect , Horizontal base: Left edge.

    Les calques se sont déplacés horizontalement pour venir aligner leur bord gauche sur le bord gauche du canevas.


    Figure 16.79.  Example Use of Collect: Layers Aligned to Left Edge of the Bottom Layer

    Example Use of Collect: Layers Aligned to Left Edge of the Bottom Layer

    Image d’origine

    Example Use of Collect: Layers Aligned to Left Edge of the Bottom Layer

    Same parameters as the previous example, but with the Use the (invisible) bottom layer as the base checkbox checked.

    Les calques se sont déplacés horizontalement pour aligner leur bord gauche sur le bord gauche du calque du bas de la pile.


  • Remplir (de gauche à droite / de haut en bas) : Cette option place la base sélectionnée des calques visibles, régulièrement, horizontalement / verticalement sur l’image, dans l’ordre de haut en bas de la pile des calques. Le premier calque de la pile est placé sur la position horizontale (verticale) la plus à gauche (la plus haute). Le dernier calque de la pile est placé sur la position horizontale (verticale) la plus à droite (la plus basse). Si l’option « calque du bas comme base » est cochée, la base du calque du haut est alignée sur le bord correspondant du calque du bas de la pile.

    Figure 16.80.  Example Use of Fill: Layers Filled Left to Right

    Example Use of Fill: Layers Filled Left to Right

    Image d’origine

    Example Use of Fill: Layers Filled Left to Right

    Horizontal style: Fill (left to right), Horizontal base : Left edge.

    The top layer in the stack, the green one, is placed all the way on the left. The bottom layer in the stack, the red one, is placed is on the right and the yellow layer is between the other two.


    Figure 16.81.  Example Use of Fill: Layers Filled Left to Right With the Bottom Layer as the Base

    Example Use of Fill: Layers Filled Left to Right With the Bottom Layer as the Base

    Image d’origine

    Example Use of Fill: Layers Filled Left to Right With the Bottom Layer as the Base

    Same parameters as the previous example, but with the Use the (invisible) bottom layer as the base checkbox checked.


  • Remplir (de droite à gauche / de bas en haut) : Comme précédemment, cette fonction lit la pile des calques de haut en bas, mais affiche les calques alignés de droite à gauche / de bas en haut.

    Figure 16.82.  Example Use of Fill: Layers Filled Bottom to Top With the Bottom Layer as the Base

    Example Use of Fill: Layers Filled Bottom to Top With the Bottom Layer as the Base

    Image d’origine

    Example Use of Fill: Layers Filled Bottom to Top With the Bottom Layer as the Base

    Vertical style: Fill (bottom to top), Vertical base : Top edge, Use the (invisible) bottom layer as the base: checked.


    Les options de remplissage nécessitent trois calques visibles au moins.

  • Snap to grid: The visible layers will be aligned with a grid. Use the Grid setting to define the spacing of the grid. The base that you select will be aligned with its closest grid line. For example, if you select Left edge from the Horizontal base list, the left edge of each layer will be aligned with the grid line that is closest to the layer's left edge.

    In the following example, the image grid is turned on and its spacing set to the same value as the Grid setting. This is only to help demonstrate the effect of the Snap to grid option. You don't need to turn on the image grid and none of its settings are used when you align layers.

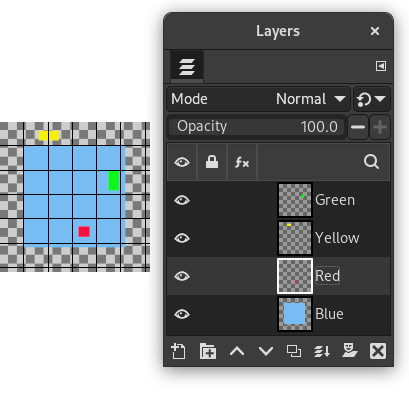

    Figure 16.83.  Example Use of Snap to Grid: Layers Aligned to Top Left Corner of Grid Squares

    Example Use of Snap to Grid: Layers Aligned to Top Left Corner of Grid Squares

    Original image with an added 30 pixel image grid

    Example Use of Snap to Grid: Layers Aligned to Top Left Corner of Grid Squares

    Horizontal style: Snap to grid, Horizontal base: Left edge, Vertical style : Snap to grid, Vertical base: Top edge , Grid: 30

    Each layer other than the base is aligned with the top left corner of a 30 by 30 pixel grid square.


Grille

If you choose the Snap to grid option from either the Horizontal style or Vertical style lists, the Grid setting defines the spacing of the grid to which layers are aligned.
