6.30. Align Visible Layers…

Com o comando Alinhar camadas visíveis você pode posicionar as camadas visíveis de forma muito precisa (aquelas marcadas co o ícone de olho). este grau de precisão é especialmente útil quando você está trabalhando em animações, ousprites para uso na Web, quando tipicamente existem muitas camadas pequeninas. Clicar em Alinhar camadas visíveis exibe um diálogo que permite que você escolha como as camadas serão alinhadas.

6.30.1. Ativando o comando

  • You can access this command from the main menu through ImageAlign Visible Layers…. There is no default keyboard shortcut. If the image holds a single layer only, you get a message from GIMP telling that there must be more than one layer in the image to execute the command.

6.30.2. Example Image for Layer Alignment

The examples in the Description of the “Align Visible Layers” dialog section all use the same starting image. The image contains four layers. The order of those layers from top to bottom is as follows:

  • Green, vertical rectangle (top layer)

  • Yellow, horizontal rectangle

  • Red, small square

  • Blue, larger square (bottom layer)

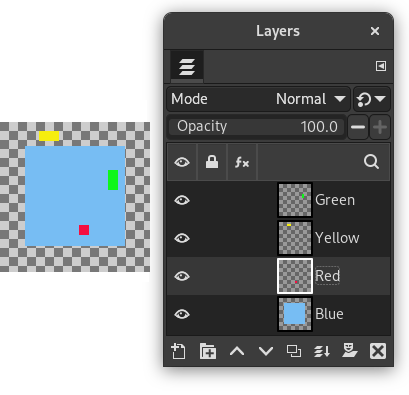

Figura 16.76. Example Image for Layer Alignment

Example Image for Layer Alignment

The Align Visible Layers command aligns layers based on their boundaries. In the example image, each layer's boundary is adjusted to match the perimeter of the shape in that layer. For information about how to adjust a layer's boundary, see Layer Boundary Size. You can also use a command such as Crop Layers to Content to automatically adjust a layer's boundary.

[Nota] Nota

In the examples, the Ignore the bottom layer even if visible checkbox is left checked. The bottom layer, which is the larger blue square, is then not affected by any of the alignment operations.

6.30.3. Descrição do diálogo de Alinhar camadas visíveis

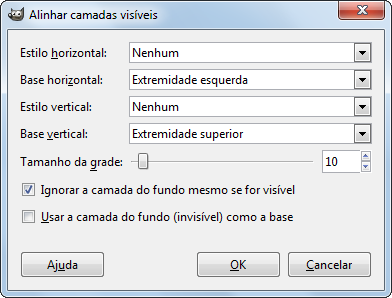

Figura 16.77. O diálogo de Alinhar camadas visíveis

O diálogo de “Alinhar camadas visíveis”

Horizontal style, Vertical style

Essas opções controlam como as camadas serão posicionadas em relação umas as outras. Você pode escolher:

  • Nenhum: Não haverá mudanças na posição horizontal ou vertical (respectivamente)

  • Coletar: as camadas visíveis serão alinhadas na tela de pintura, na forma que for determinado pelas opções de Base horizontal e Base vertical. Se você selecionar uma Base horizontal de Extremidade direita, as camadas podem desaparecer da tela de pintura. Você poderá recupera-las aumentando a tela de pintura. Se você habilitar a opção de Usar a camada do fundo (invisível) como a base, as camadas serão alinhadas no canto superior esquerdo da camada do fundo.

    Figura 16.78. Example Use of Collect: Layers Aligned to Left Edge of the Canvas

    Example Use of Collect: Layers Aligned to Left Edge of the Canvas

    Imagem original

    Example Use of Collect: Layers Aligned to Left Edge of the Canvas

    Horizontal style: Collect , Horizontal base: Left edge.

    As camadas foram movidas horizontalmente de forma que seus cantos esquerdos estão alinhados com a borda esquerda da tela de pintura.


    Figura 16.79. Example Use of Collect: Layers Aligned to Left Edge of the Bottom Layer

    Example Use of Collect: Layers Aligned to Left Edge of the Bottom Layer

    Imagem original

    Example Use of Collect: Layers Aligned to Left Edge of the Bottom Layer

    Same parameters as the previous example, but with the Use the (invisible) bottom layer as the base checkbox checked.

    As camadas foram movidas horizontalmente de forma que sua borda ficou alinhada com a borda da camada do fundo.


  • Preencher (esquerda para direita); Preencher (cima para baixo): As camadas visíveis serão alinhadas coma tela de pintura de acordo coma borda que você selecionar naBase horizontal ou na Base vertical, respectivamente. As camadas são arranjadas regularmente, de forma que não se sobreponham. A camada no topo da pilha é colocada na posição mais a esquerda (ou mais acima). A camada do fundo da pilha fica na posição mais a direita (ou mais pra baixo). As demais camadas são posicionadas a intervalos regulares entre essas duas camadas. Se a opção de Usar a camada do fundo (invisível) como a base estiver habilitada, as camadas são alinhadas com a borda respectiva da camada do fundo.

    Figura 16.80. Example Use of Fill: Layers Filled Left to Right

    Example Use of Fill: Layers Filled Left to Right

    Imagem original

    Example Use of Fill: Layers Filled Left to Right

    Horizontal style: Fill (left to right), Horizontal base : Left edge.

    The top layer in the stack, the green one, is placed all the way on the left. The bottom layer in the stack, the red one, is placed is on the right and the yellow layer is between the other two.


    Figura 16.81. Example Use of Fill: Layers Filled Left to Right With the Bottom Layer as the Base

    Example Use of Fill: Layers Filled Left to Right With the Bottom Layer as the Base

    Imagem original

    Example Use of Fill: Layers Filled Left to Right With the Bottom Layer as the Base

    Same parameters as the previous example, but with the Use the (invisible) bottom layer as the base checkbox checked.


  • Preencher (direita para esquerda); Preencher (baixo para cima): Essas configurações funcionam da mesma forma que as descritas acima, mas o preenchimento acontece na direção oposta.

    Figura 16.82. Example Use of Fill: Layers Filled Bottom to Top With the Bottom Layer as the Base

    Example Use of Fill: Layers Filled Bottom to Top With the Bottom Layer as the Base

    Imagem original

    Example Use of Fill: Layers Filled Bottom to Top With the Bottom Layer as the Base

    Vertical style: Fill (bottom to top), Vertical base : Top edge, Use the (invisible) bottom layer as the base: checked.


    Deve haver ao menos 3 camadas visíveis na imagem para usar as opções de Preencher.

  • Snap to grid: The visible layers will be aligned with a grid. Use the Grid setting to define the spacing of the grid. The base that you select will be aligned with its closest grid line. For example, if you select Left edge from the Horizontal base list, the left edge of each layer will be aligned with the grid line that is closest to the layer's left edge.

    In the following example, the image grid is turned on and its spacing set to the same value as the Grid setting. This is only to help demonstrate the effect of the Snap to grid option. You don't need to turn on the image grid and none of its settings are used when you align layers.

    Figura 16.83. Example Use of Snap to Grid: Layers Aligned to Top Left Corner of Grid Squares

    Example Use of Snap to Grid: Layers Aligned to Top Left Corner of Grid Squares

    Original image with an added 30 pixel image grid

    Example Use of Snap to Grid: Layers Aligned to Top Left Corner of Grid Squares

    Horizontal style: Snap to grid, Horizontal base: Left edge, Vertical style : Snap to grid, Vertical base: Top edge , Grid: 30

    Each layer other than the base is aligned with the top left corner of a 30 by 30 pixel grid square.


Grade

If you choose the Snap to grid option from either the Horizontal style or Vertical style lists, the Grid setting defines the spacing of the grid to which layers are aligned.
