5.27. Export Image as HTML Table

5.27.1. Overview

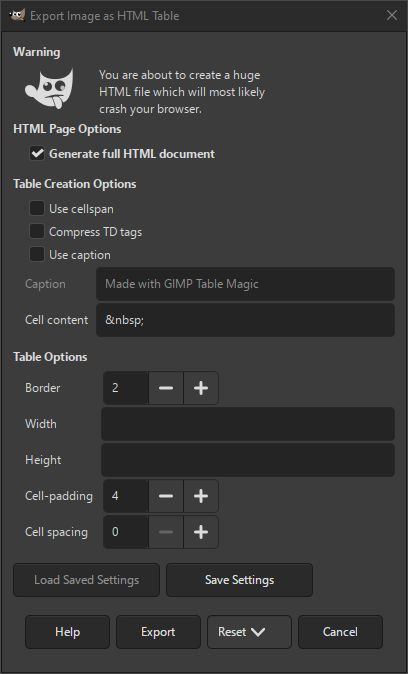

Figure 15.75. The HTML Table Export dialog

The html table export dialog allows you to export your image as an html file where the image is represented by a table of colored squares. A similar exporter is Colored HTML text.

You can export your image in this format when you choose the “.htm” extension, or explicitly choose “HTML Table” as file type in the export dialog.

	Warning
	This generates very large html tables, even for smaller size images. This can slow down or even crash your browser.

5.27.2. Options

HTML Page Options

Generate full HTML document: When checked, a complete html document will be generated, instead of only the html for the table.

Table Creation Options

Use cellspan: If enabled, rectangular sections of identically colored blocks will be replaced by one large cell with ROWSPAN and COLSPAN html tags set to the correct size.
Compress TD tags: If enabled, no whitespace will be added between the html TD tags and the cell content. This is only necessary for pixel level positioning control.
Use caption: If enabled, a caption will be added above the table.
Caption: Enter the text of the caption for the html table here.
Cell content: Enter the text or character to be used as cell content. The default will show up as an empty colored block.

Table Options

Border: The size in pixels of the table border.
Width, Height: Set the dimensions of each table cell here. You can enter the number of pixels or a percentage.
Cell-padding: The amount of cell padding.
Cell spacing: The amount of cell spacing.
