5.32. Експортувати зображення як JPEG

5.32.1. Огляд

JPEG files usually have an extension .jpg, .JPG, or .jpeg. It is a very widely used format, because it compresses images very efficiently, while minimizing the loss of image quality. No other format comes close to achieving the same level of compression. It does not, however, support transparency or multiple layers.

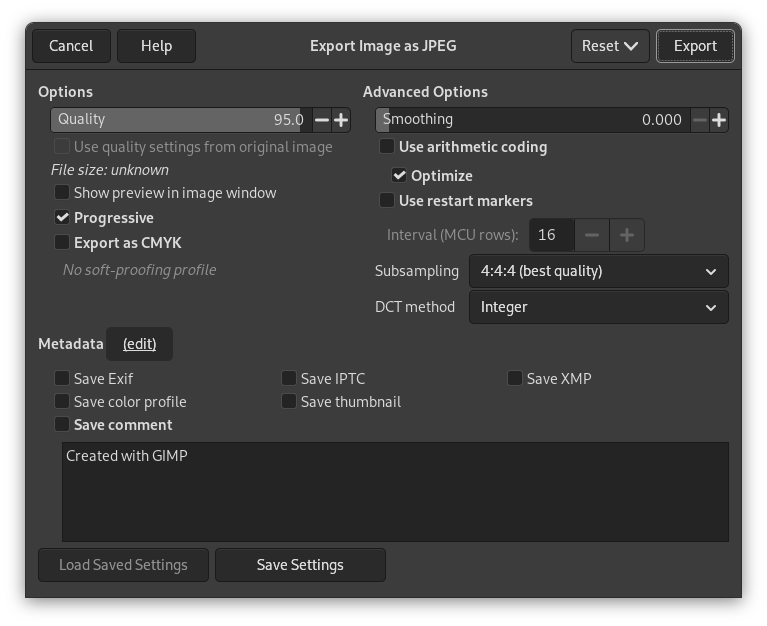

Рисунок 15.80. Вікно експортування до JPEG

Вікно експортування до JPEG

The JPEG algorithm is quite complex, and involves a bewildering number of options, whose meaning is beyond the scope of this documentation. Unless you are a JPEG expert, the Quality parameter is probably the only one you will need to adjust.

5.32.2. Параметри

Якість

When you save a file in JPEG format, a dialog is displayed that allows you to set the Quality level, which ranges from 0 to 100. Values above 95 are generally not useful, though. The default quality of 85 usually produces excellent results, but in many cases it is possible to set the quality substantially lower without noticeably degrading the image. You can test the effect of different quality settings by checking Show Preview in image window in the JPEG dialog.

[Примітка] Примітка

Please note, that the numbers for the JPEG quality level have a different meaning in different applications. Saving with a quality level of 80 in GIMP is not necessarily comparable with saving with a quality level of 80 in a different application.

Використовувати характеристики якості початкового зображення

If a particular quality setting (or «quantization table») was attached to the image when it was loaded, then this option allows you to use them instead of the standard ones.

If you have only made a few changes to the image, then re-using the same quality setting will give you almost the same quality and file size as the original image. This will minimize the losses caused by the quantization step, compared to what would happen if you used different quality setting.

If the quality setting found in the original file are not better than your default quality settings, then the option «Use quality settings from original image» will be available but not enabled. This ensures that you always get at least the minimum quality specified in your defaults. If you did not make major changes to the image and you want to save it using the same quality as the original, then you can do it by enabling this option.

Перегляд у вікні зображення

Checking this option causes each change in quality (or any other JPEG parameter) to be shown in the image display. (This does not alter the image: the image reverts back to its original state when the JPEG dialog is closed.)

Додаткові параметри

Певні відомості щодо додаткових параметрів:

Згладжування

JPG compression creates artifacts. By using this option, you can smooth the image when saving, reducing them. But your image becomes somewhat blurred.

Прогресивне

With this option enabled, the image chunks are stored in the file in an order that allows progressive image refinement during a slow connection web download. The progressive option for JPG has the same purpose as the interlace option for GIF. Unfortunately, the progressive option produces slightly larger JPG files (than without the progressive option).

[Примітка] Примітка

Beware that certain older TVs and photo frames (and maybe other devices) may not be able to show jpeg images that have been exported with the progressive setting enabled (which is the default).

Експортувати як CMYK

If you have a CMYK profile assigned to your image as soft-proofing profile, this setting can be checked to have your image exported using that CMYK profile. This is sometimes required when you have your image professionally printed. Your printing company will tell you if this is needed.

If this setting is disabled, you don't have a soft-proofing profile set for this image yet. See assigning a Soft-Proof Profile.

The name of the CMYK profile that is assigned to this image will be shown below this setting.

Використати арифметичне кодування

Arithmetic encoding is a form of entropy encoding (a lossless data compression scheme) that can be used in exporting as JPEG. Images using arithmetic encoding can be 5 - 10 % smaller. But older software may have trouble opening these images.

Оптимізувати

If you enable this option, the optimization of entropy encoding parameters will be used. The result is typically a smaller file, but it takes more time to generate.

Використовувати маркери перезапуску

The image file can include markers which allow the image to be loaded as segments. If a connection is broken while loading the image in a web page, loading can resume from the next marker.

Інтервал (рядки MCU)

JPEG images are stored as a series of compressed square tiles named MCU (Minimum Coding Unit). You can set the size of these tiles (in pixels).

Субдискретизація

The human eye is not sensitive in the same way over the entire color spectrum. The compression can use this to treat slightly different colors that the eye perceives as very close, as identical colors. The following methods are available:

4:4:4 (найвища якість)

This produces the best quality, preserving borders and contrasting colors, at the cost of not compressing as well as the other methods.

4:2:2 (колірність поділена навпіл горизонтально)

This is the standard subsampling, which usually provides a good ratio between image quality and file size. There are situations, however, in which using no subsampling (4:4:4) provides a noticeable increase in the image quality; for example, when the image contains fine details such as text over a uniform background, or images with almost-flat colors.

4:2:2 (колірність поділена навпіл вертикально)

This is similar to 4:2:2, but chroma is reduced in the vertical direction.

4:2:0 (колірність поділена на чотири частини)

This produces the smallest files. This suits images with weak borders but tends to denature colors.

DCT Method

DCT is «discrete cosine transform», and it is the first step in the JPEG algorithm going from the spatial to the frequency domain. The choices are:

Швидке ціле

This method is much less accurate than the other methods, but faster.

Ціле

This method is faster than Floating-Point, but not as accurate. This is the default.

З рухомою комою

This is slightly more accurate than the integer method, but is much slower unless your machine has very fast floating-point hardware. Also note that the results of the floating-point method may vary slightly across machines, while the integer methods should give the same results everywhere.

Редактор метаданих

You can click the «(edit)» link to open the metadata editor to change or add any metadata that you want to be included in the image. Note: you will also still need to enable the relevant metadata saving options listed below.

The metadata settings in the export dialog override the default values set in your Metadata Export Preferences.

Зберегти дані Exif

Якщо позначено цей пункт, до експортованого зображення буде збережено метадані EXIF.

Зберегти дані IPTC

Якщо позначено цей пункт, до експортованого зображення буде збережено метадані IPIC.

Зберегти дані XMP

Якщо позначено цей пункт, до експортованого зображення буде збережено метадані XMP.

Зберегти колірний профіль

Якщо позначено цей пункт, до експортованого зображення буде збережено профіль кольорів.

Зберегти мініатюру

When this option is enabled a thumbnail will be saved in the exported image as part of the EXIF metadata. This will also cause certain EXIF tags to be saved, even if you have disabled saving EXIF metadata.

Зберегти коментар

Ви зможете прочитати цей коментар у властивостях зображення.
